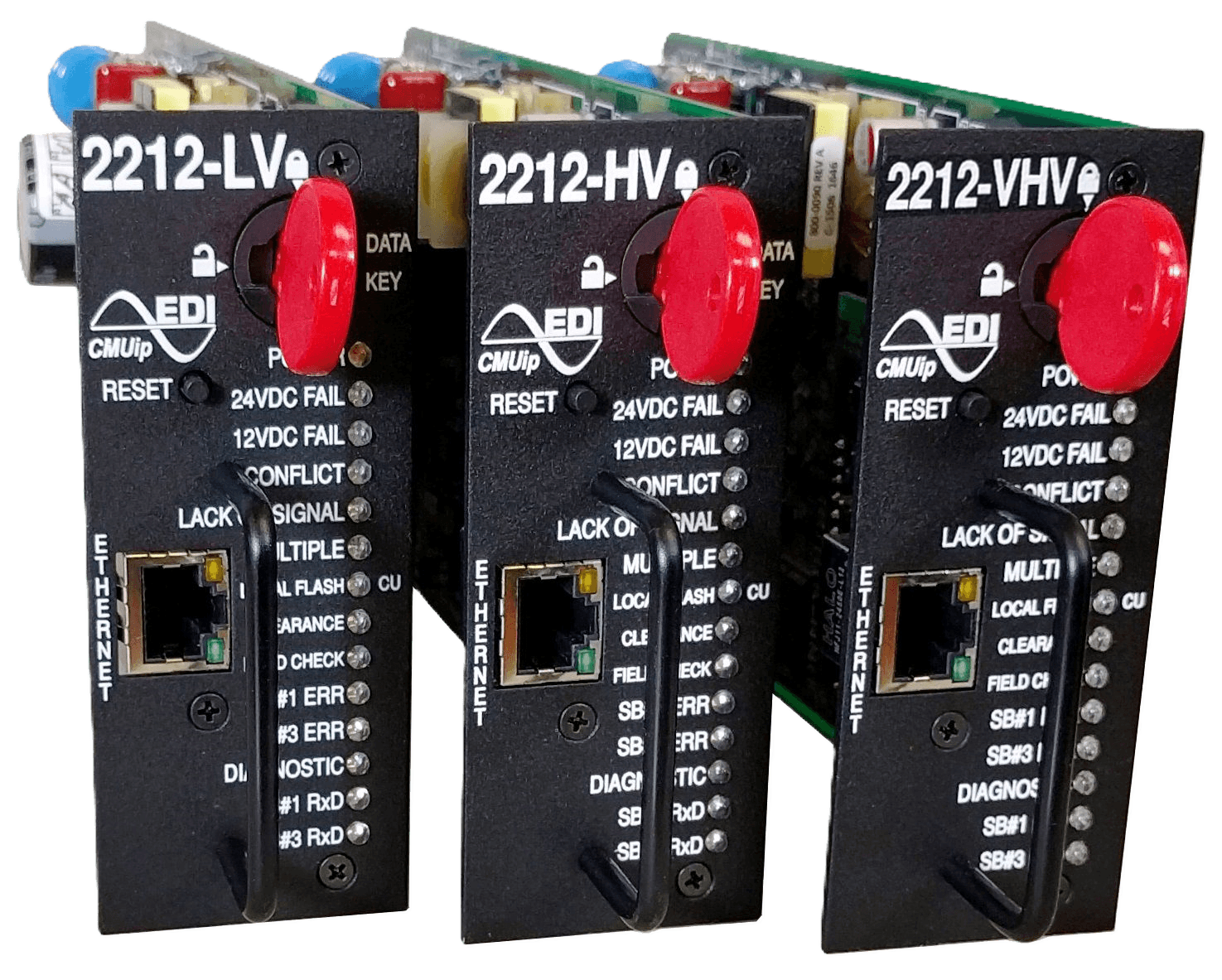

CMU-2212 Series
The CMUip-2212 Series provides advanced fault detection and diagnostics for ATC cabinets, offering unmatched monitoring precision, programmable configuration, and load current tracking in a low-voltage, touch-safe design.
Key Features:
- 32 Physical Channels + 4 Virtual Channels– Supports up to 32 physical channels, with the option for 4 additional virtual channels.
- Interchangeable Datakey™– Easy, secure programming and data management with removable Datakey™.
- Real-Time Load Current Monitoring– Monitors current via iPack® 2202 switches for precise load tracking.
- Field Check Monitor– Isolates ATC controller issues from load bay or wiring faults for fast troubleshooting.
- Nonvolatile Event Log– Stores full intersection and voltage/current data for comprehensive diagnostics.
- Signal Sequence History Log– Captures event history with 50ms resolution for detailed analysis.
- Data Access via ECcom Software– Enables easy logging and configuration through ECcom.
- MonitorKey® Setup Wizard– Assists with Datakey programming and initial setup.
- Multiple Power Options– Operates on 48 VDC, 120 VAC, or 220 VAC depending on model.
