Key features
High-level product advantages presented in a cleaner review format.

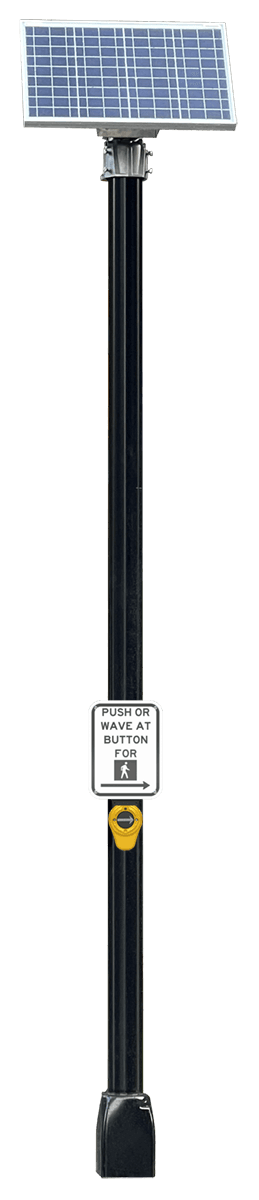

Surface-Mounted Pole Design
Installs in under an hour with no foundation or trenching, saving up to $65,000 in installation costs.
Wireless Communication
2-way PRM technology ensures 99.9% uptime and seamless WALK cycle service.
Actuated & Pretimed Compatibility
Works with both intersection types for flexible deployment.
Solar-Powered & Sustainable
50W panel with extended battery life and 6–10+ days of backup power.
Secure, Simple Setup
Configure easily via encrypted Android/iOS Field Service App.
Rugged, All-Weather Design
Built to NEMA TS2, FCC, and AASHTO standards for operation in extreme environments.
Specifications
Dedicated technical preview for quick review.
- Included components
- Wireless ped head control unit (WPC); 50 W solar kit with batteries; Android/iOS setup app; 10 ft Frey pole (optional). APS ordered separately
- WPC input
- 89-135 VAC; built-in surge protection
- WPC power draw
- 2 W
- WPC operation modes
- Non-actuated (one-way wireless communication) or actuated (two-way wireless communication)
- WPC dimensions
- 6.02 in W x 3.5 in D x 1.26 in H
- WPC mounting
- Installs in the pedestrian signal head with the included hardware kit and antenna assembly
- WPC temperature
- Operating range of -34 °C to +74 °C (-30 °F to +165 °F); storage range of -40 °C to +85 °C (-40 °F to +185 °F)
- WPC design compliance
- NEMA TS2 (temperature and humidity, mechanical shock and vibration); NEMA TS2 and IEC 61000-4-2 thru 6 (transient protection and immunity); FCC Part 15, Class B (radiated and conducted emissions)
- WPC warranty
- 3 year
- Solar panel
- 50 W high-efficiency photovoltaic panel; 26.3 in L x 21.2 in W (668 mm L x 538 mm W), not including mount
- Battery charger
- Maximum Power Point Tracking with Temperature Compensation (MPPT-TC)
- Batteries
- 2x 18 Ah maintenance-free, non-proprietary AGM batteries; system designed for 5+ year battery life
- Solar kit enclosure
- Weatherproof, gasketed enclosure with vents for ambient air transfer (NEMA 3R), padlockable; corrosion-resistant aluminum with stainless steel hardware
- Solar kit mounting
- Universal top-of-pole mounting hardware for round poles between 3.5 in and 4.5 in OD
- Wind rating
- 150 mph (241 km/h) wind speed as per AASHTO LTS-6
- Solar kit temperature range
- System range of -34 °C to 74 °C (-29 °F to 165 °F); battery range of -20 °C to 49 °C (-4 °F to 120 °F)
- Solar kit warranty
- 3 year limited warranty on solar kit; 1 year limited warranty on batteries
- Optional pole
- 4.5 in outside diameter; 10 ft 9.5 in height; base 7 in wide, 10 in tall (included in pole height); aluminum pole, cast aluminum base
