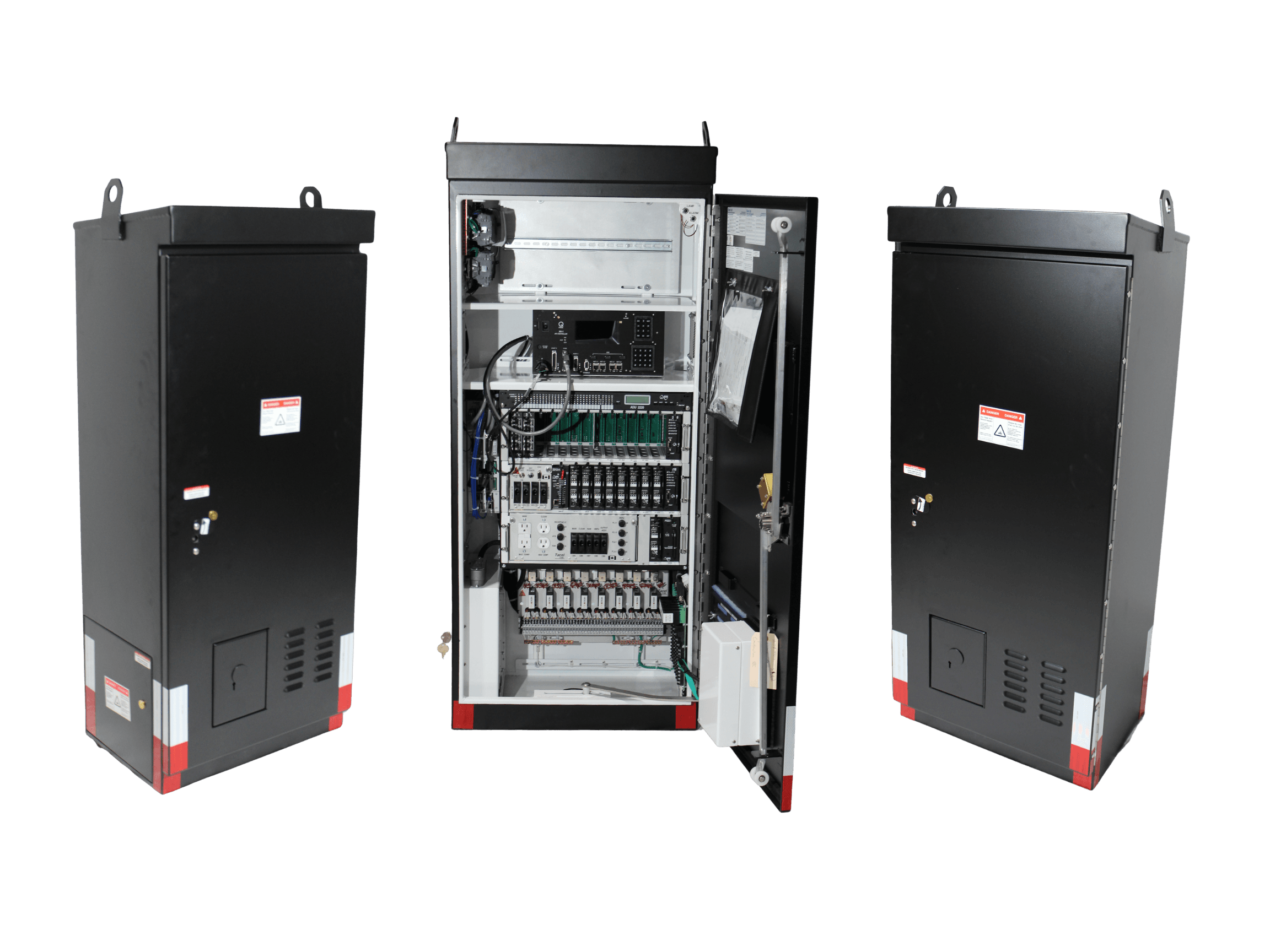

16 & 32 Channel ATC Cabinets
Tacel's 16 and 32 Channel ATC Cabinets are modern, rugged traffic controller cabinets engineered for Canadian environments. Designed with safety, space efficiency, and smart city readiness in mind, these cabinets are built to deliver long-term, reliable intersection control.
Key Features:
- Support for up to 48 detector inputs and either 16 or 32 channel outputs
- Dark approach detection with load current monitoring
- Zero AC exposure design for enhanced technician safety
- Continuous system monitoring for FTR and flasher status
- Side-by-side front and rear doors with reduced swing for easy maintenance in tight spaces
- Compatible with connected vehicle technologies
- Compact footprint while retaining traditional NEMA cabinet size
- Supports Eberle Design Inc. 244L 4-channel DC isolators with status bit control
- Versatile field terminal options with 12–22 AWG wire support
- LED indicators for critical controller functions (MCE, Flash, Off, etc.)
- Durable FR4 conformal-coated PCBs with 2 oz copper traces
- Available in aluminum or stainless steel with painted or unpainted finishes
